NumPy, SciPy, and Matplotlib

NumPy

  • NumPy is a Python library that enables vectors and matrices to be stored as arrays
  • NumPy provides very fast mathematical functions that can operate on these arrays.

Importing NumPy

It is common to import NumPy using the command

import numpy as np

Defining arrays

  • Arrays are defined using the array function.
  • A vector (1D array) can be created by passing a list to array

Example: Create the vector \(v = (1, 2, 3)\)

v = np.array([1, 2, 3])
print(v)
[1 2 3]

A matrix (2D array) can be created by passing a nested list to array, where each inner list is a row of the matrix

Example: Create the matrix \[ M = \begin{pmatrix} 1 & 2 \\ 3 & 4 \end{pmatrix} \]

M = np.array([ [1, 2], [3, 4] ])
print(M)
[[1 2]
 [3 4]]

Accessing elements

  • Individual elements in a 1D array can be accessed using square brackets and a numerical index
  • Indexing NumPy arrays starts at 0
# print the second element of vector v
print(v[1])
2
  • Use two indices separated by a comma for 2D arrays (first index = row, second index = column)
# print the entry in the second row, first column of M
print(M[1, 0])
3

Accessing sequential elements

A colon (:) can be used to access sequential elements in an array:

v = np.array([1, 2, 3, 4, 5, 6, 7, 8, 9])
print(v[:])
[1 2 3 4 5 6 7 8 9]

The notation v[a:b] will access entries starting at index \(a\) and ending at \(b-1\)

# print the third to fifth entries
print(v[2:5])
[3 4 5]

Some useful functions for creating arrays

  • linspace(a, b, N) creates a 1D array with \(N\) uniformly spaced entries between \(a\) and \(b\) (inclusive)
  • eye(N) creates the \(N \times N\) identity matrix
  • ones(dims) creates arrays filled with ones, where dims is a tuple of integers that describes the dimensions of the array
  • zeros(dims) creates arrays filled with zeros
  • random.random(dims) creates an array with random numbers between 0 and 1 from a uniform distribution

Operations on NumPy arrays

Many mathematical operations can be performed immediately

  • + and -: element-by-element addition and subtraction
  • *: scalar multiplication or element-by-element multiplication
  • dot(a,b): dot product of two 1D arrays a and b
  • @: matrix multiplication

NumPy comes with mathematical functions that can operate on arrays (e.g. trig functions, exp, log) * np.sin(x): applies the sin function to each element of x

Linear algebra with NumPy

The linalg module of NumPy has functions for linear algebra. For example:

  • linalg.solve(A,b): Solve a linear system of equations of the form \(Ax = b\)
  • linalg.det(A): Compute determinants of \(A\)
  • linalg.inv(A): Compute the inverse of \(A\), ie \(A^{-1}\)
  • linalg.eig(A): Compute the eigenvalues and eigenvectors of \(A\)

SciPy

Is a Python package that contains functions for a wide range of mathematical problems

  • Special functions, e.g. Bessel functions
  • Solving nonlinear equations
  • Optimisation
  • Interpolation
  • Integration (including solving ODEs)
  • Linear algebra (including sparse linear algebra)
  • and more

The SciPy package is imported using the code

import scipy

As part of this unit, we will be solving nonlinear algebraic equations and optimisation problems

  • scipy.optimize.root solves algebraic equations
  • scipy.optimise.minimize minimises a scalar function with multiple variables

We will also learn about other SciPy functions that are useful for finding the numerical solution to PDEs and optimisation problems.

Matplotlib

  • Used for visualising data in Python (eg creating plots)
  • Works well with NumPy

Usually imported using

import matplotlib.pyplot as plt

A basic example

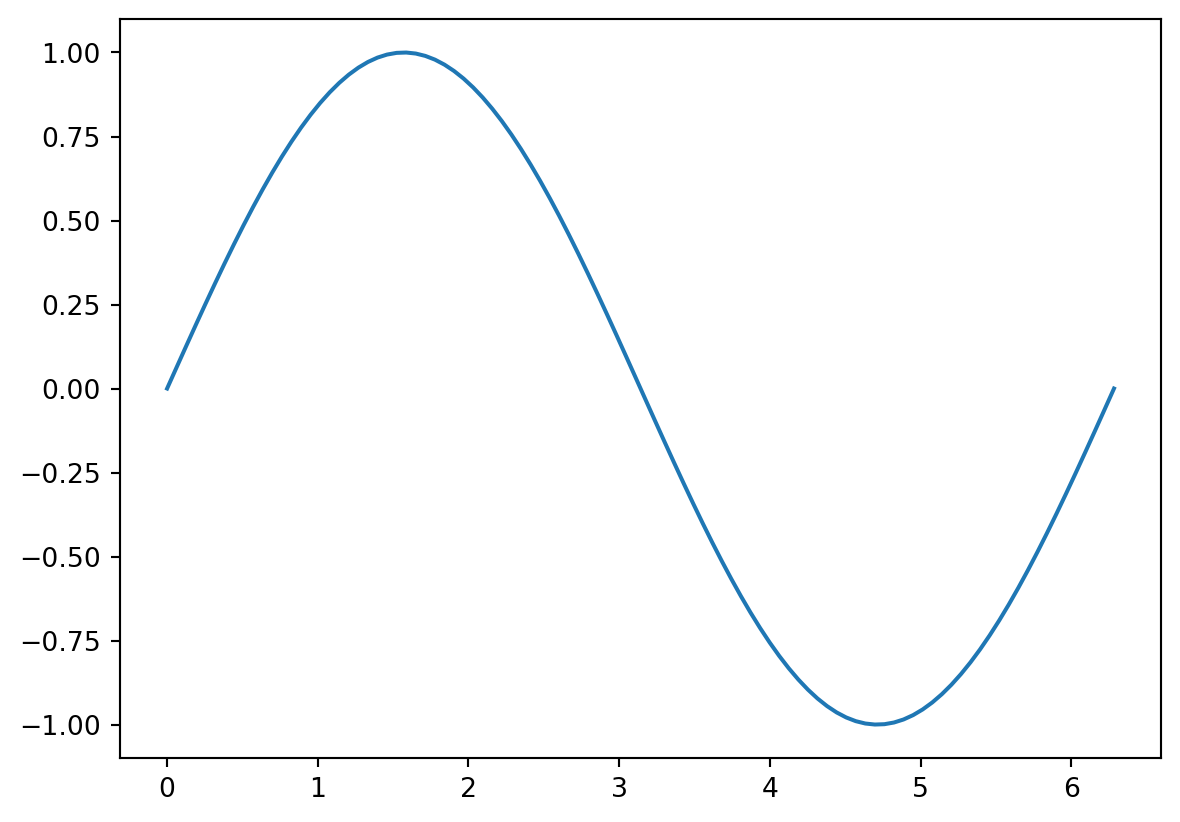

Plot \(y = \sin(x)\) from \(x = 0\) to \(x = 2\pi\)

x = np.linspace(0, 2 * np.pi, 100)
y = np.sin(x)

plt.plot(x, y)
plt.show()

  • There are many options that can edited to make figures look nicer
  • There are also many different styles of figures (e.g. contour plots, scatter plots)
  • See https://github.com/rougier/matplotlib-tutorial for a good overview of the options

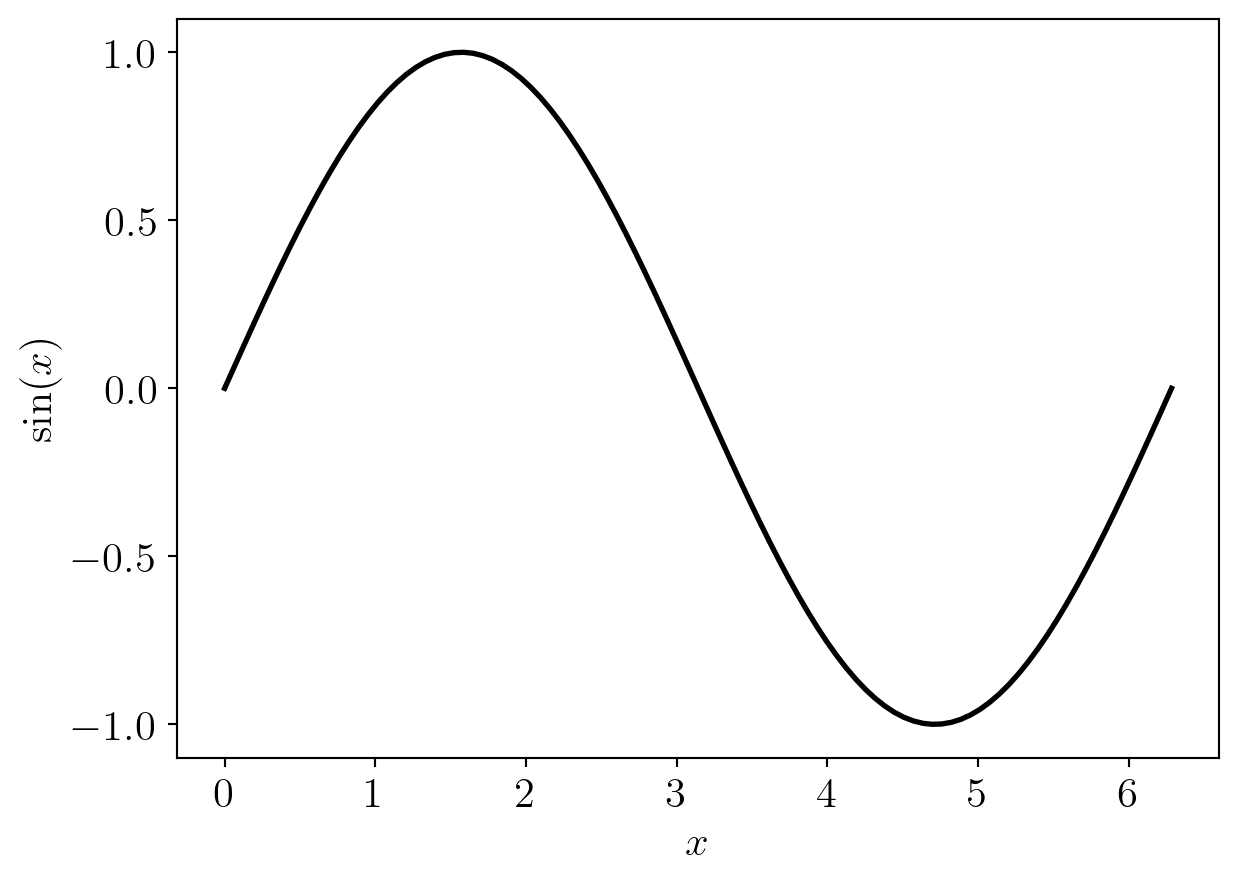

# use latex fonts and use a fontsize of 16 everywhere
plt.rcParams.update({"text.usetex": True, "font.size": 16})

# plot
plt.plot(x, y, linewidth=2, color='black')

# add labels to the axes
plt.xlabel(r'$x$')
plt.ylabel(r'$\sin(x)$')

# show the plot
plt.show()

Summary

  • NumPy provides functionality for storing numerical data as arrays and performing operations on these
  • SciPy contains functions for solving a wide variety of mathematical problems
  • Matplotlib is for visualising data
